Specification

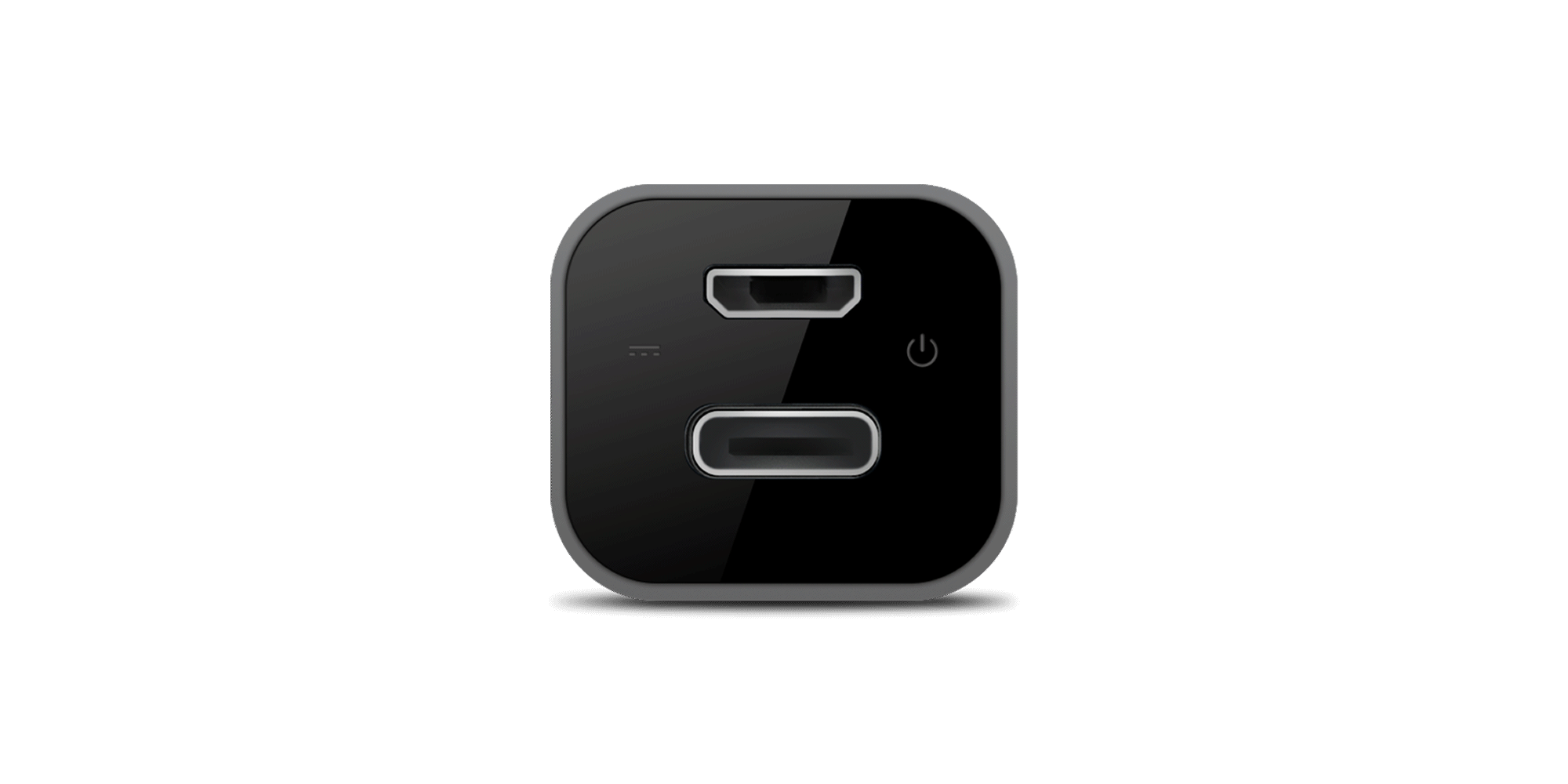

Input | USB-C™ jack Data/Power, USB Micro-B External Power |

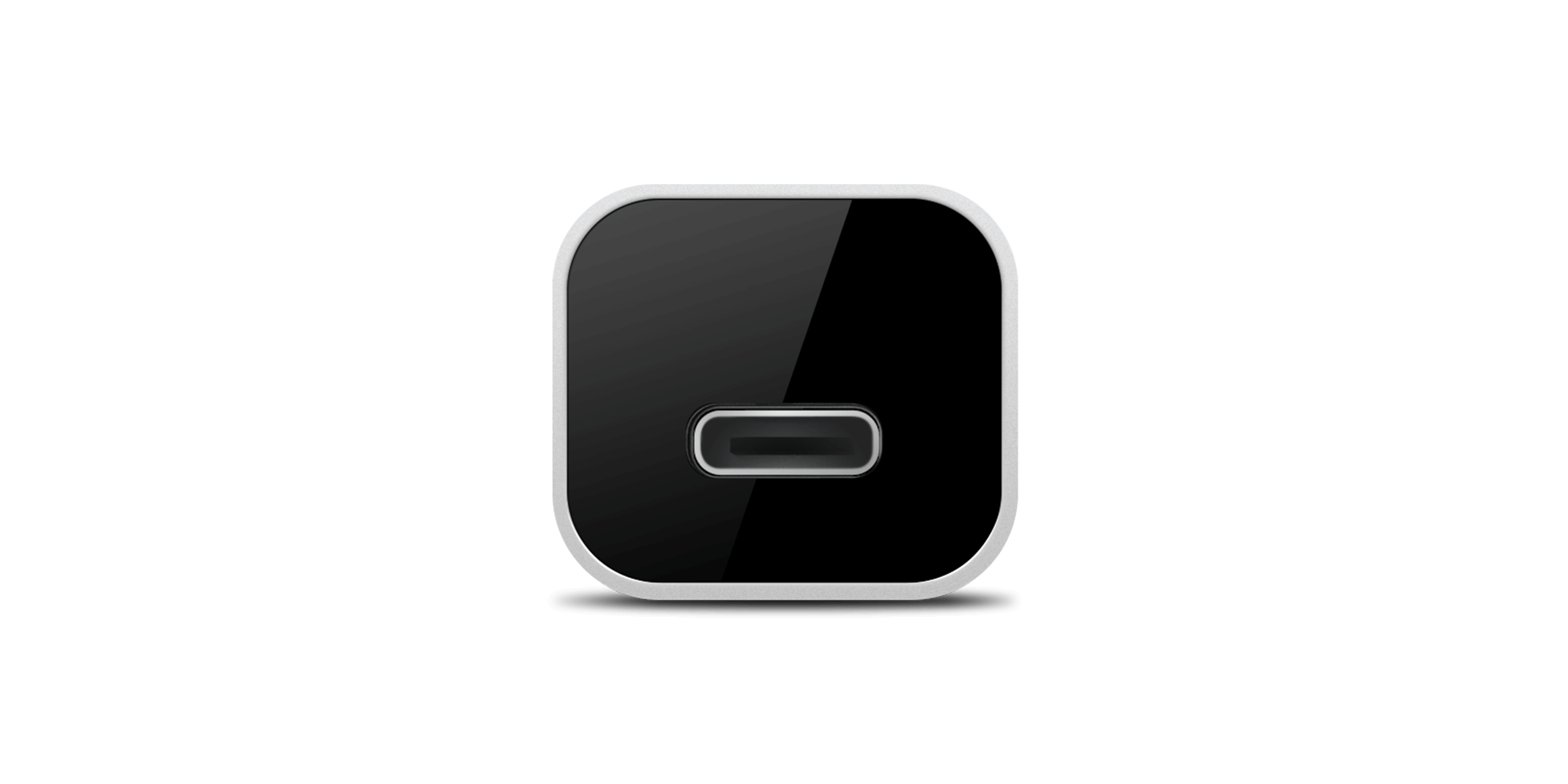

Output | USB-C™ jack |
Speed | High Speed (USB 2.0, 480 Mbps). Compatible with Low Speed (1.5 Mbps), Full Speed (12 Mbps) |
Power | 2W (0.4A, 5V connected only to hosts's USB port), max 15W (3A, 5V external optional power provided via USB Micro-B port) |
Parasitic Capacitance | Ultra-low (20-22pF) |
Isolation | Galvanic (Data and Power): 3kV DC Power for 60 seconds, 5.7kV RMS Data for 60 seconds |
USB Data Re-clocking | Ultra-precise at wide temperature range |
IP Rating | IP67 |
Grade | Industrial, suitable for harsh environments |
Applications | Audio, Industrial, Measurement, Testing, Medical |
Audio Compatibility | Compatible with any USB DAC with output formats up to 8-channel 32-bit 1.536 Mhz PCM and 8-channel DSD1024 |
Operating Temperature | −40°C to +70°C |
Materials | Aluminum (enclosure), Gorilla Glass 3 (side panels) |
Color | Silver or Iron Grey |
Dimensions | Ultra small size: 40.3 x 22.3 x 20 mm (L x W x H) |
Weight | 30 gr |
Certification
Package
Package includes:

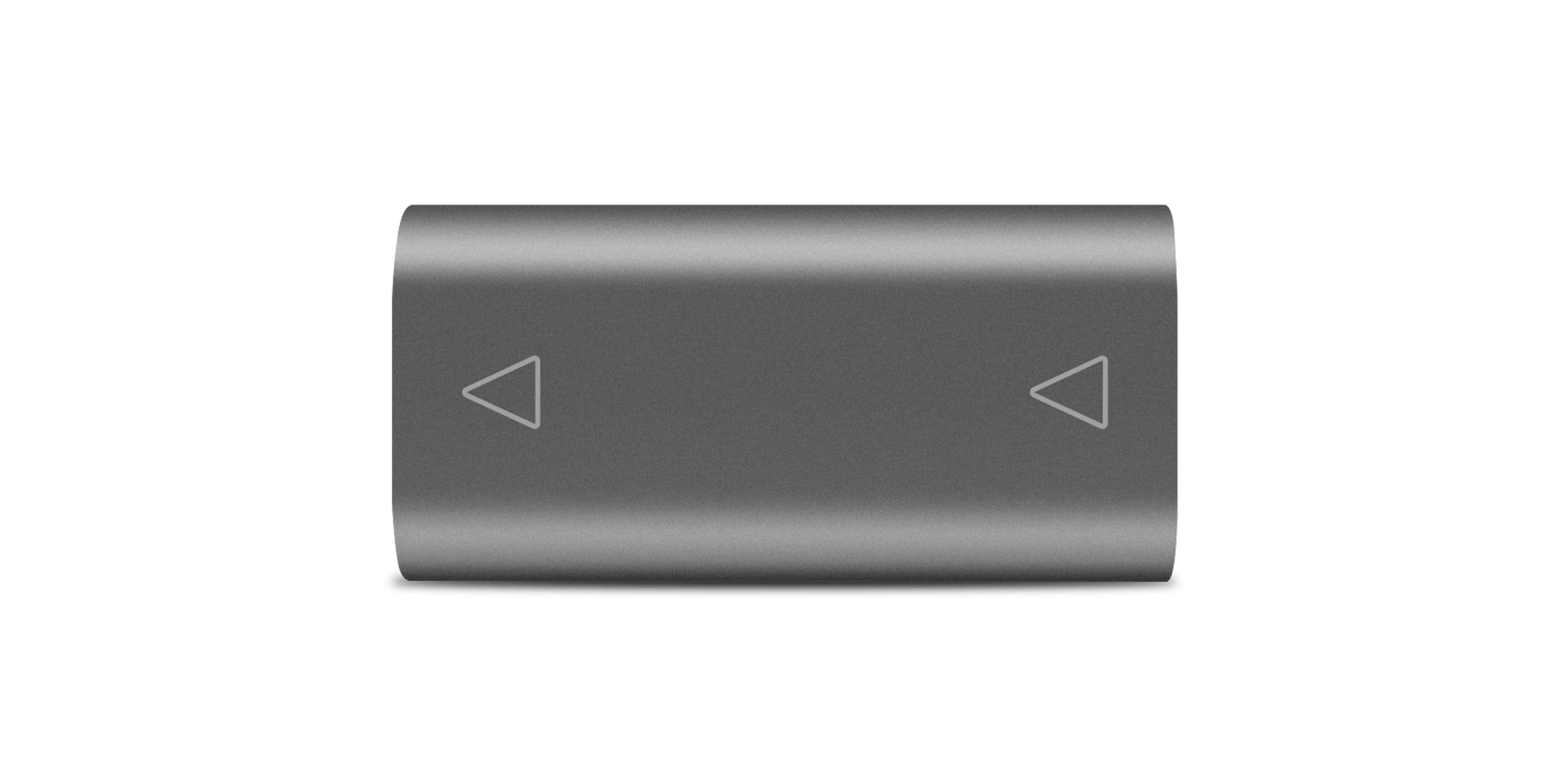

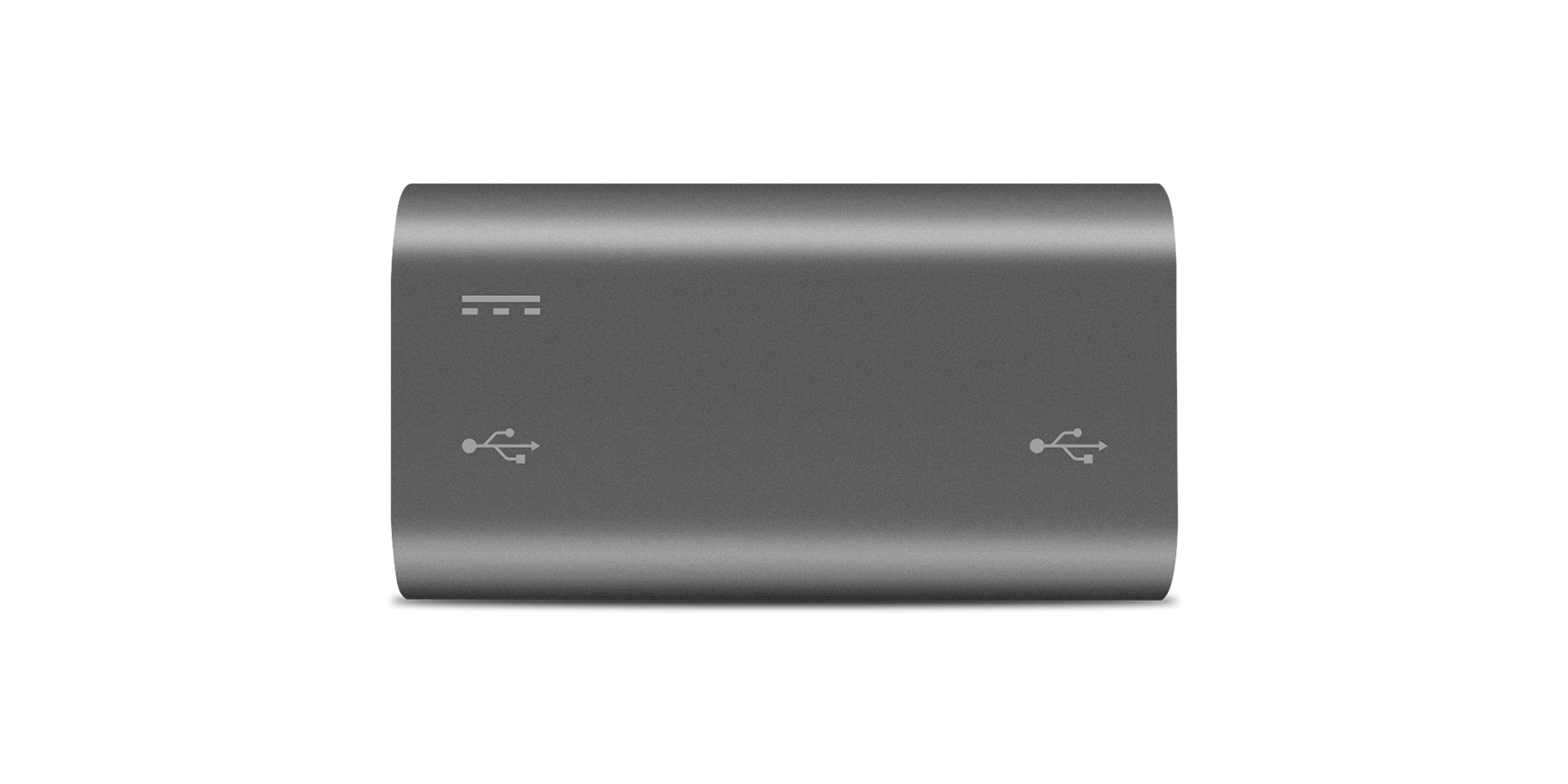

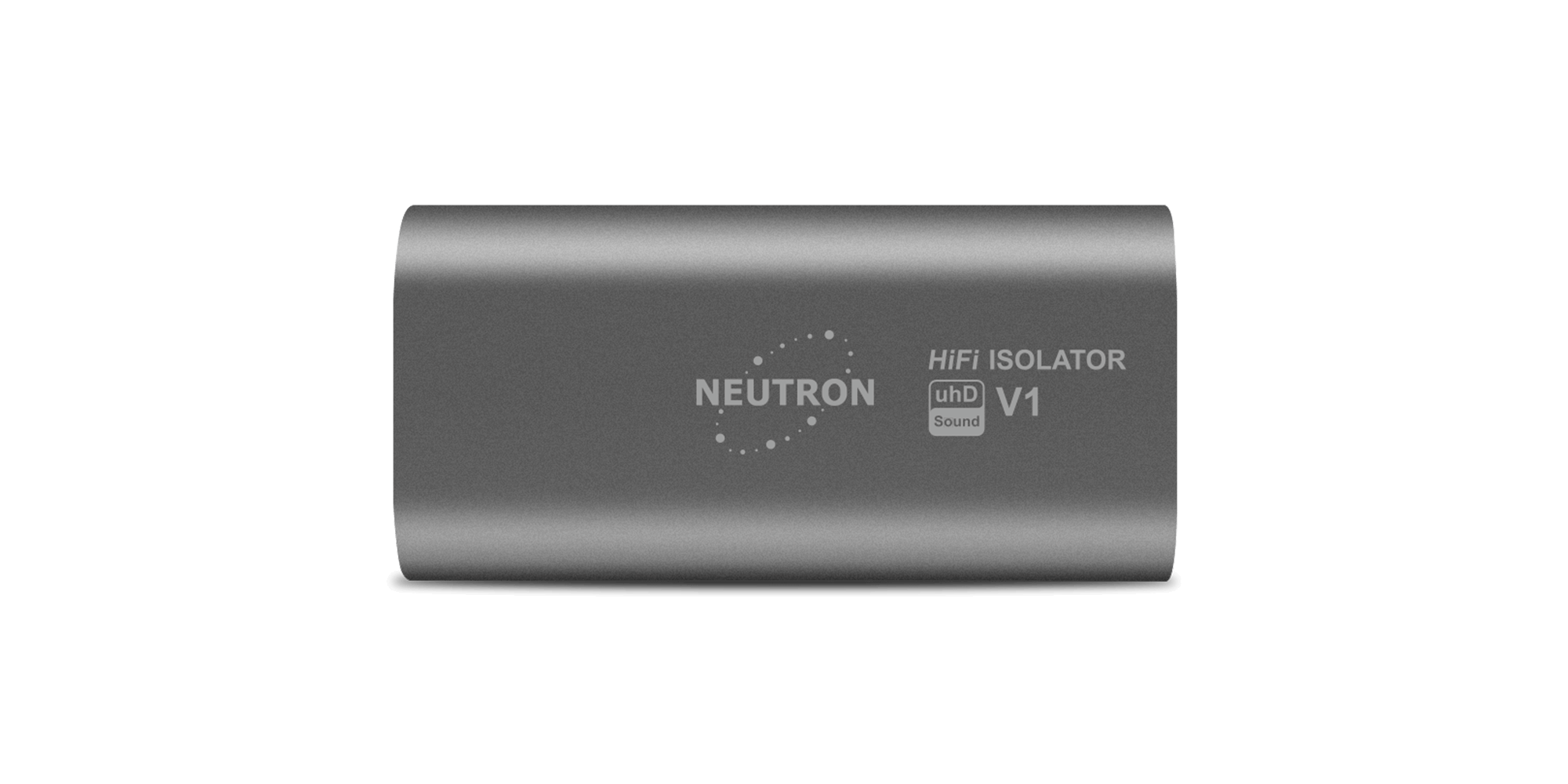

- Neutron HiFi™ Isolator V1 device, 1 pcs
